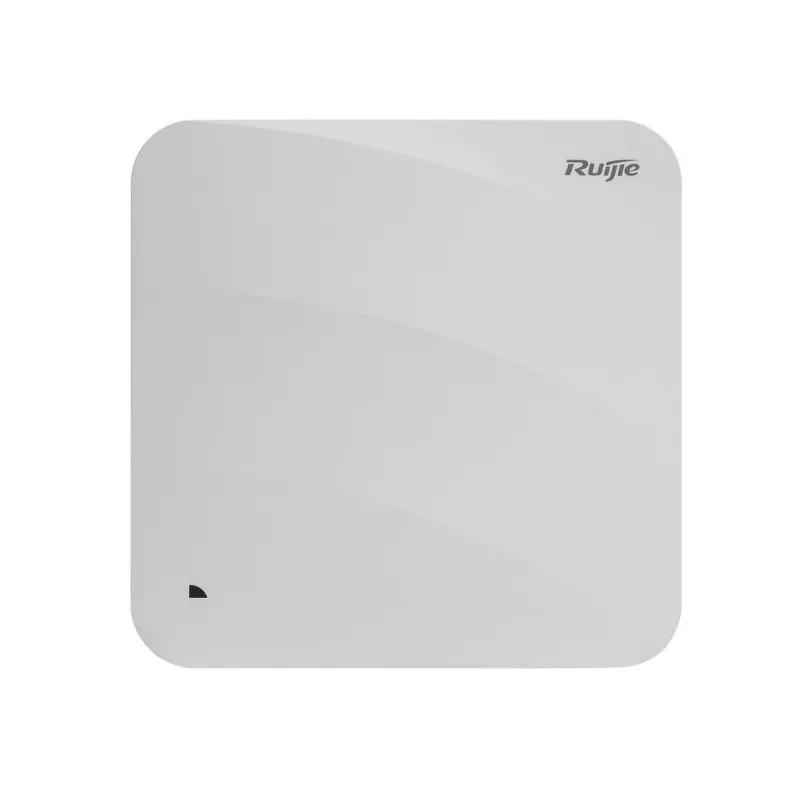

Ruijie RG-AP820-L(V3) Wireless Access Point
The Ruijie RG-AP820-L(V3) is a high-performance Wi-Fi 6 indoor access point built for demanding environments such as schools, offices, hotels, retail, and enterprise networks.
With support for Wi-Fi 6 (802.11ax), HE160, OFDMA, 1024-QAM, and a maximum throughput of 2.976 Gbps, it delivers fast, stable wireless performance in high-density areas.
It features both a 1GbE port and a 2.5GE SFP uplink, supports PoE or DC power, and includes advanced roaming, security, and client-optimization mechanisms.
Designed for scalability, it works in Fat, Fit, and Cloud mode, providing hybrid management through Ruijie Cloud or local wireless controllers.
This access point is ideal for schools, universities, large campuses, enterprise offices, hospitality, and high-capacity indoor environments.
| Product Information | |
|---|---|
| Model | RG-AP820-L(V3) |
| Type | Wi-Fi 6 Dual-Radio Indoor Access Point |
| Dimensions & Weight | |
| Unit Dimensions | 220 × 220 × 49 mm |
| Unit Weight | 0.6 kg (main unit) + 0.2 kg bracket |
| Mounting | Wall/Ceiling Mount (Bracket included) |
| Wireless Performance | |
| Wi-Fi Standard | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-Radio (2.4 GHz + 5 GHz), up to 4 spatial streams |
| Maximum Data Rate | 2.976 Gbps (combined) |
| 2.4 GHz Speed | Up to 574 Mbps |
| 5 GHz Speed | Up to 2.402 Gbps |
| Channel Width | 20/40/80/160 MHz (HE160) |
| Antenna | Built-in omnidirectional antennas (2×2 per band) |
| Antenna Gain | 5 dBi (2.4 GHz), 5 dBi (5 GHz) |
| Transmit Power | Up to 26 dBm (country dependent) |
| Technologies | OFDMA, 1024-QAM, MU-MIMO, Beamforming, DFS |
| Ports | |
| Ethernet Port | 1 × 10/100/1000BASE-T (PoE In) |
| SFP Port | 1 × 2.5GE SFP (compatible with 1GE modules) |
| Console Port | 1 × RJ45 Console |
| Buttons | Reset (Reboot/Factory Reset) |
| Power | |
| Power Input | 48V DC (adapter not included) or PoE 802.3af/at/bt |
| Max Power Consumption | 12.95 W |
| Environment | |
| Operating Temperature | –10°C to +50°C |
| Humidity | 0%–95% RH (non-condensing) |
| IP Rating | IP41 |
| MTBF | 200,000 hours |
| WLAN & Management | |
| Max Associated Clients | 256 |
| Recommended Clients | Up to 120 active clients/AP |
| Max SSIDs | 32 (16 per radio) |
| Security | WPA2/WPA3, 802.1X, RADIUS, Captive Portal, PSK |
| Management | Ruijie Cloud, AC Controller, Web UI (eWeb), CLI, SNMP |
| Package Contents | |
| Included | Main Unit, Mounting Bracket, Screws, Wall Anchors, Quick Start Guide, Warranty Card |
